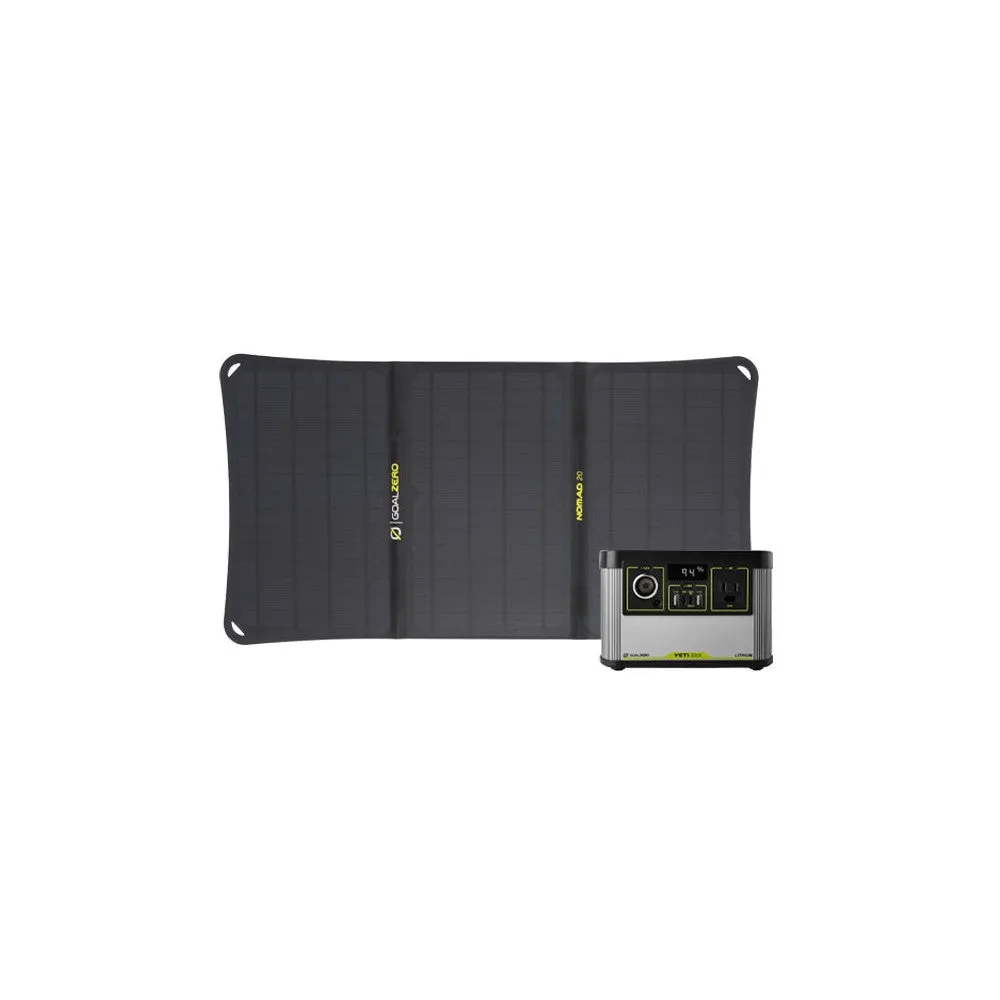

Combines the Yeti 200X, our most lightweight power station that delivers 187 Watt Hours of power, with a 20-Watt foldable solar panel. Fast-charging, ultra-portable design with the perfect amount of power for essentials.

box1

YETI 200X NOMAD 20 SOLAR GENERATOR HIGHLIGHTS

• This solar generator can recharge from the sun in as little as 11 hours.
• Lightweight and portable, this generator is ideal for someone on the move.
• A sustainable energy source with no noise and no fumes.

features

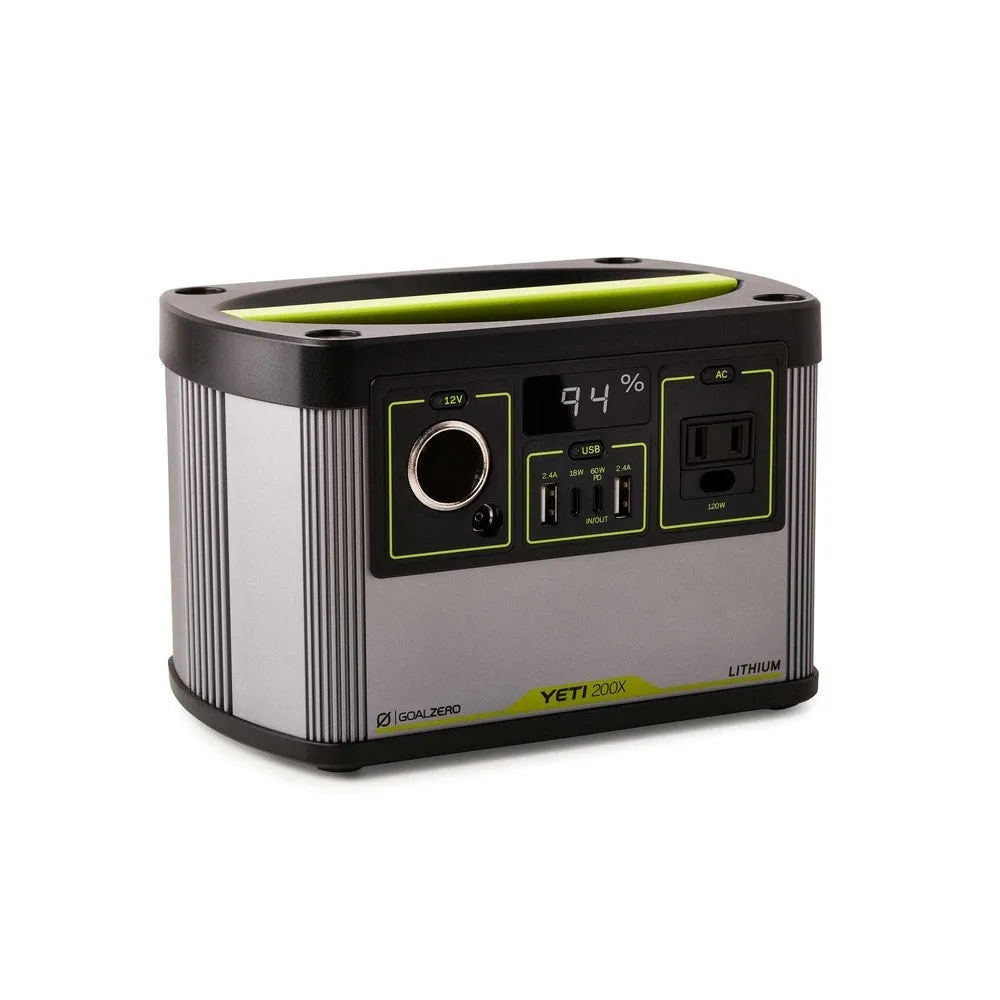

YETI 200X HIGHLIGHTS

• Compact, Lightweight Power Station
  The Yeti 200X Power Station delivers high-quality lithium power you can rely on, housed in an ultra-portable design made to take anywhere. Yeti 200X is one of the most lightweight power stations on the market and the lightest Goal Zero Yeti to date.
• High-Speed Charging Solution
  Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time.
• Solar Ready
  Charge the Yeti 200X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home.

box2

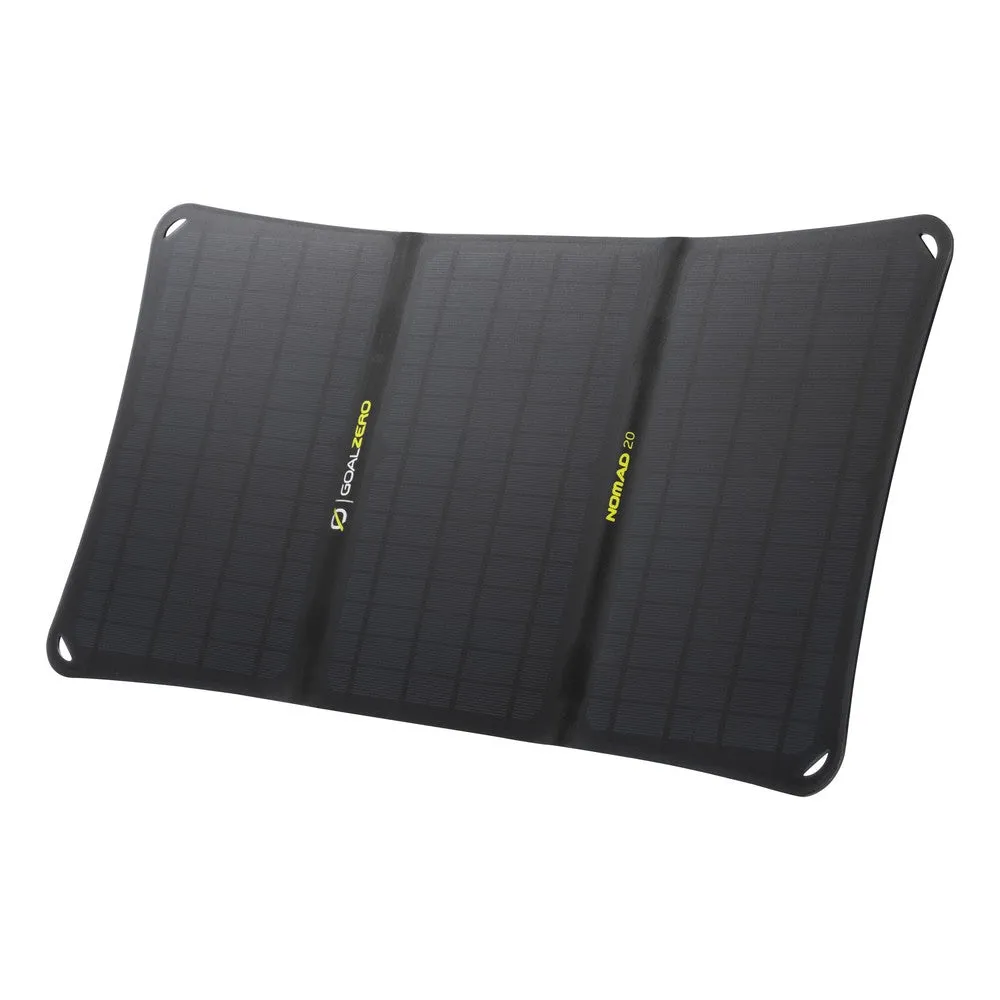

NOMAD 20 HIGHLIGHTS

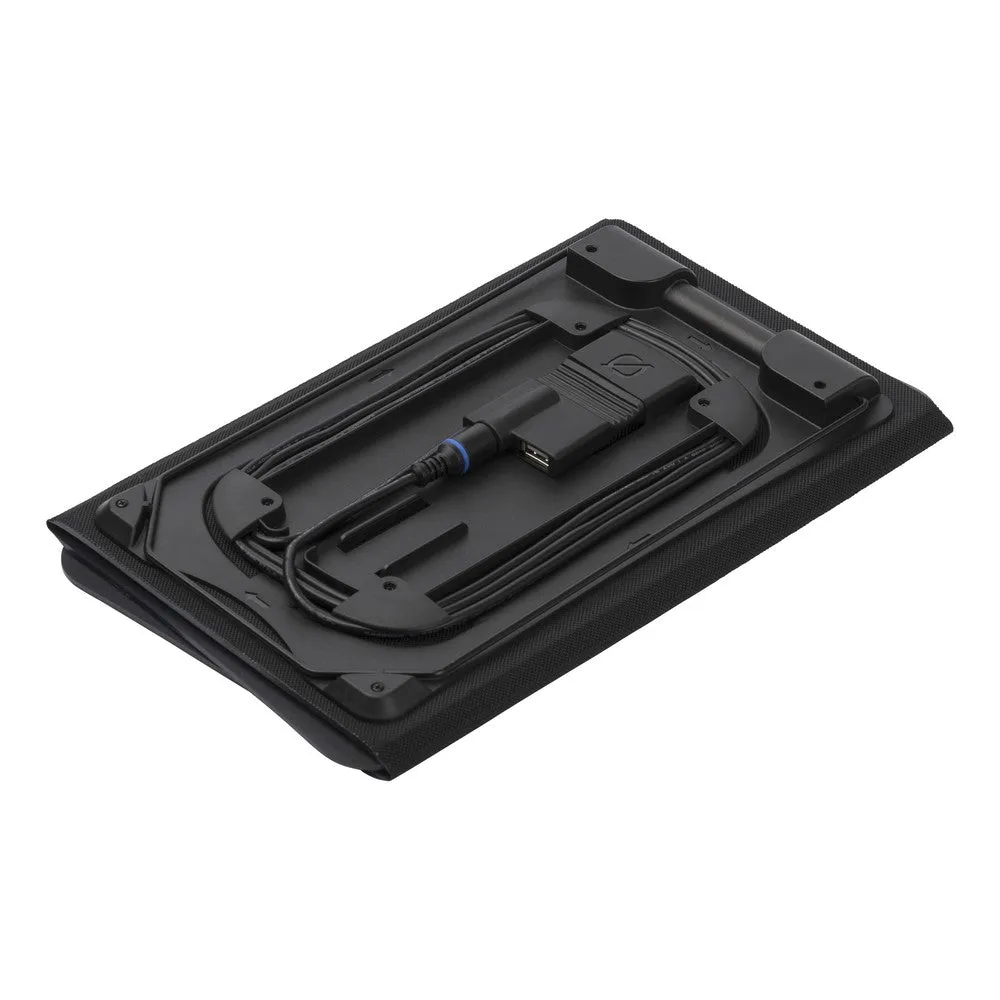

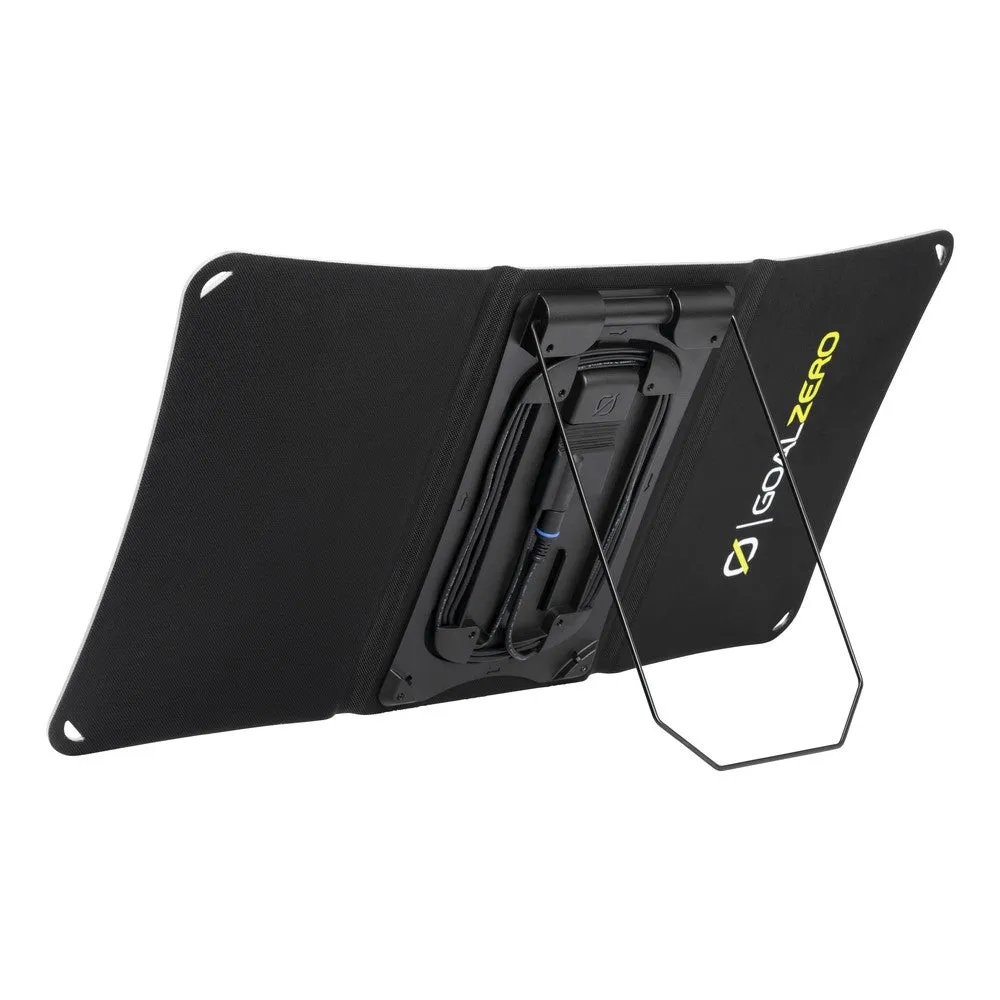

• Built-in kickstand clicks into place at multiple angles, so you can position your panel for optimal solar collection.
• Integrated 8mm cable and USB port let you charge a range of small to medium size devices including phones, tablets, power banks, and more. If you want to capture more sun, the 8mm cable lets you chain additional solar panels for faster charge time.
• Rugged and durable, built to last as long as your adventures do.

TIPS & TRICKS FOR USING SOLAR PANELS

• The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
• Place solar panels towards the sun at an angle.
• Connect High Power Power to Yeti Power Station.
• Adjust solar panel as the sun moves across the sky.

box3

THREE WAYS TO CHARGE THE YETI 200X

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel, either the solar panels. The higher the watts of the panel, the faster the charging times.
• FROM THE WALL
  Plug it into the wall. Fully recharges in 4 hours using included 60W power supply, or plug in with the to halve that charge time.
• FROM THE CAR
  Plug into your vehicle's 12V outlet using the NOTE: Do not attempt to charge your Yeti Lithium from a 12V source using any other cable. Doing so may cause damage to the unit.

specs

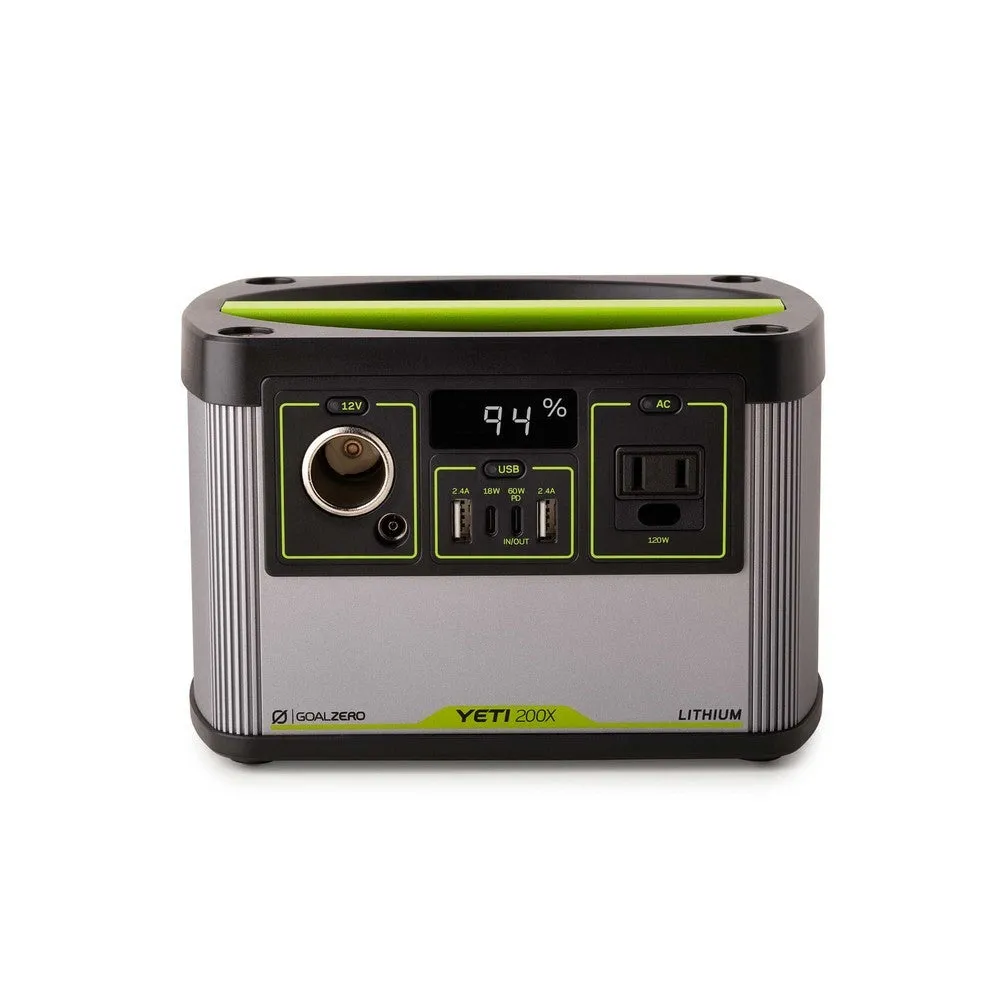

1. 12V High Power Port

   12V, up to 10A (120W max), regulated

2. 6MM Output Ports


   12V, up to 10A (12W max)

3. (2X) USB-A Port

   5V, up to 2.4A (12W max), regulated


4. USB-C Port


   5-12V, up to 23A (18W max), regulated

5. USB-C PD port

   5 - 20V, up to 3A (60W max), regulated

6. 120V AC Inverter

   120VAC, 60Hz 1A (1200W, 200W surge)(output, modified sine wave)

tech

YETI 200X CHARGE TIMES

• Maximum input: 2 Hours
• Wall Charger (60W): 4.5 Hours
• Wall Charger (120W): 2 Hours
• Nomad 20: 11-22 Hours
• Nomad 50: 4-8 Hours
• Boulder 50: 4-8 Hours
• Nomad 100: 2-4 Hours

BATTERY DETAILS

• Cell Chemistry: Li-ion NMC
• Peak Capacity: 187Wh (14.4V, up to 13Ah)
• Lifecycles: 500 cycles to 80% (discharge rate: 1C, full charge/discharge, Temp 25C)
• Shelf-life: Keep plugged in, or charge every 3-6 months
• Management system: MPPT charge controller, low battery protection

PORTS

• USB-A port (output): 5V, up to 2.4A (12W max), regulated
• USB-C port (output): 5-12V, up to 3A (18W max), regulated
• USB PD port (input/output): 5-20V, up to 3A (60W max), regulated
• 6mm port (output): 12V, up to 10A (120W max)
• 12V car port (output): 12V, up to 10A (120W max) regulated
• AC Inverter (output, modified sine wave): 120VAC, 60hZ, 1A (120W, 200W surge)
• Charging port (input,8mm): 13-22V, up to 7A (100W max), regulated

GENERAL

• Kit SKU: 44501
• Chainable: No
• Simultaneous Recharge & Discharge: Yes
• Product SKU: 22070
• Weight: 5 lbs (2.27 kg)
• Dimensions 7.9 x 5.1 x 5.1 in (20 x 13 x 13 cm)
• Operating Usage Temp: 32-104F (0-40C)
• Warranty: 2 years

NOMAD 20 CHARGE TIMES

• Flip 36: 4-8 Hours
• Venture 30: 3-6 Hours
• Venture 70: 5.5-11 Hours
• Sherpa 40: 4-8 Hours
• Sherpa 100PD: 8-16 Hours
• Sherpa 100AC: 7.5-15 Hours
• Yeti 200X: 11-22 Hours

GENERAL

• Weight: 2.28 lbs (1.03 kg)
• Dimensions (unfolded): 11.5 x 21.75 x 0.75 in (29.2 x 55.3 x 1.9 cm)
• Dimensions (folded): 11.5 x 7.4 x 1.25 in (29.2 x 19 x 3.2 cm)
• Cable length: 6ft
• Warranty: 2 years
• UPC: 847974007655

PORTS

• Solar Port (blue, 8mm, male): 14 - 22V, up to 1.3A (20W max)
• USB port: 5V, up to 2.1A (10.5W max)
