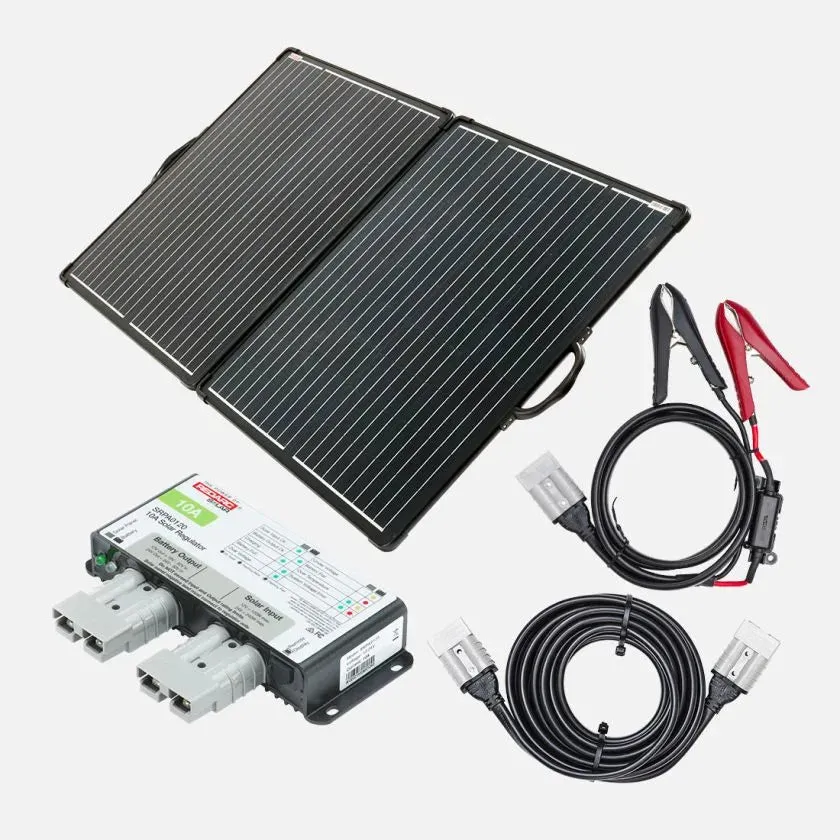

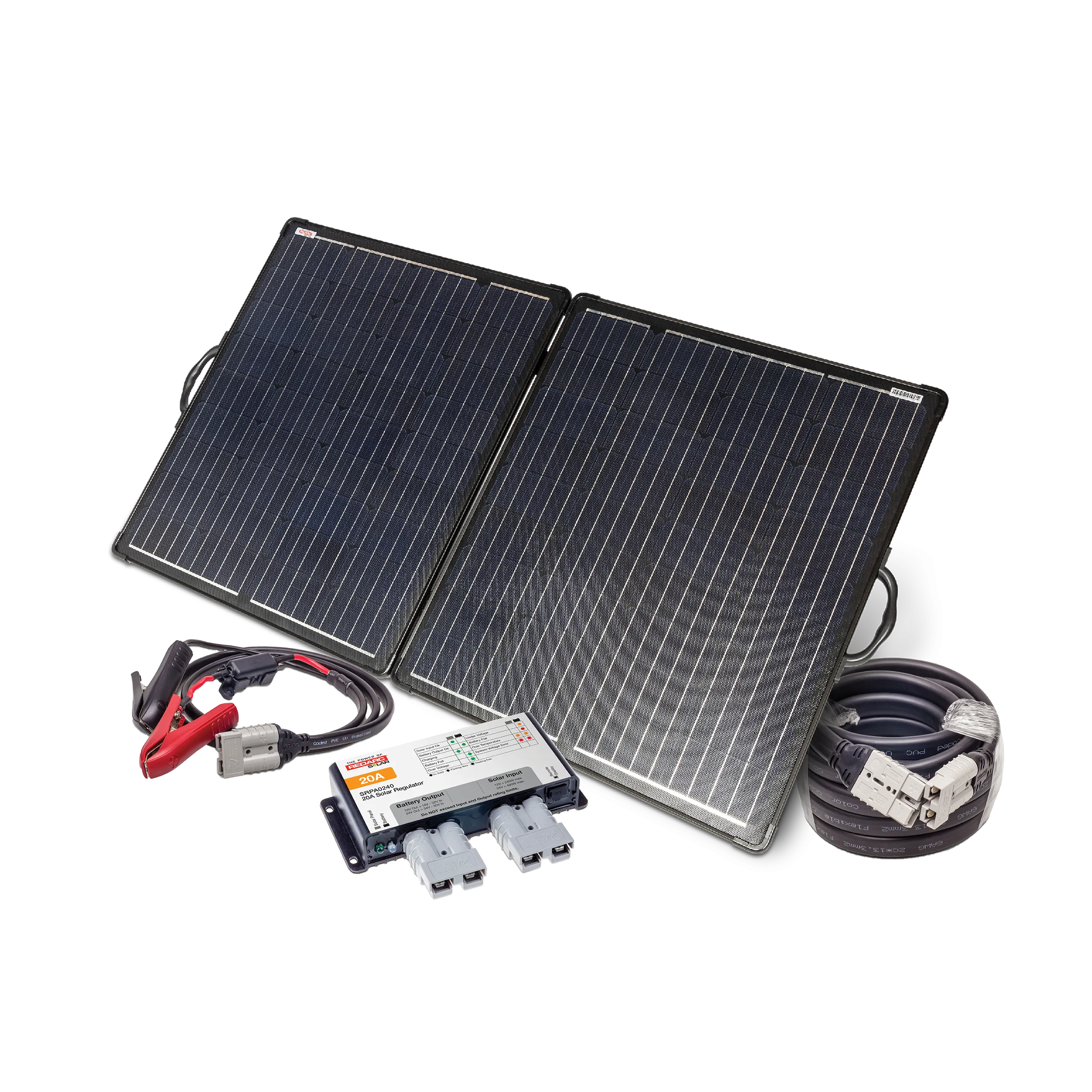

*Solar Regulator battery default setting is AGM, solar regulator is not compatible with Lithium Looking for a complete portable folding solar panel kit for your dual battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.
Folding out to 53.9" × 31.5" × 1.0" means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.
This kit includes an ETFE (ethylene tetrafluoroethylene) coating folding solar panel, as well as the regular, cables and accessories you need to take off and stay charged.
THIS KIT INCLUDES;
The Folding Solar Panels will feature genuine industry standard Anderson™ SB™ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.
Perfect to add charge via the sun to your or for extended stays or additional power to run 12v accessories.
Just need the panel? You can choose to simply buy the 200W folding panel if you already have the regulators and cables on-board.
*Solar regulator battery default setting is AGM. REDARC recommends the purchase of the to change battery types and configuration settings.
*Not compatible with Lithium (LiFePO4) batteries.
| GTIN_BARCODE | 9338628006588 |
|---|---|
| BRAND | REDARC |
| SOLAR CELL TYPE | Monocrystalline |
| OPEN CIRCUIT VOLTAGE | 24.0 V |
| WATTS | 200W |
| FRAME OR MATERIAL | Anodized aluminium |
| MAX. POWER VOLTAGE | 20V |
| SHORT CIRCUIT CURRENT | 10.8A |
| CONVERSION EFFICIENCY | 21.80% |
| OPERATING TEMPERATURE | −40°F to 185°F |
| CABLE LENGTH | 1' (300 mm) |
| WEIGHT | 20.9 lb (9.5 kg) |
| HEIGHT | 0.98" (25 mm) |
| WIDTH | 31.1" (790 mm) |
| DEPTH | LENGTH | 53.1" (1350 mm) |
| WARRANTY | 2 Years |
| DIMENSIONS OPEN | 53.9" x 31.5" x 1" (1370 x 800 x 25 mm) |
| DIMENSIONS CLOSED | 27" x 31.5" x 2" (685 x 800 x 50 mm) |
| POWER TOLERANCE | ± 3% |
| MAX POWER CURRENT | 10A |
| CONNECTOR TYPE | Anderson™ SB™ 50 |
| PEAK POWER | 200W (2 x 100W) |
